400A Power Distribution Panel
The 400 AMP Power Distribution Panel (PDP) has two independent 200 AMP cannon plug inlets with two magnetic hydraulic main circuit breakers. There are five 60 AMP cannon plugs per branch (10 total) each protected with a circuit breaker. The output connector types can be customized to meet the mission requirement. The 400 AMP PDP is easily transported, designed to stack, and has a hinged outer cover with spring latches for easy access.

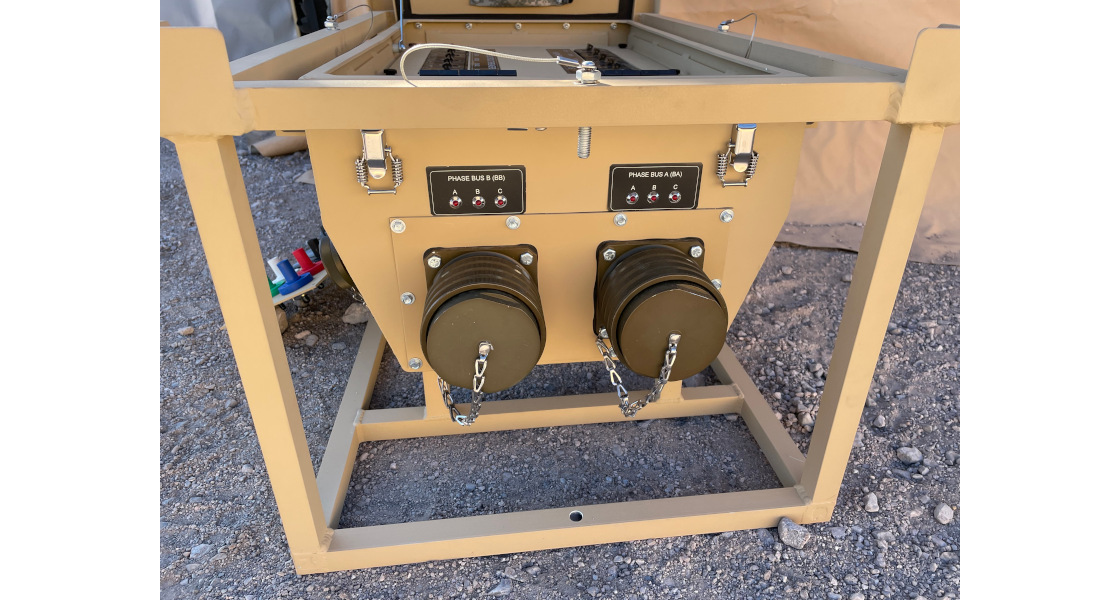

- Two independent 200 AMP cannon plugs inlets (split bus) with two magnetic hydraulic main circuit breakers

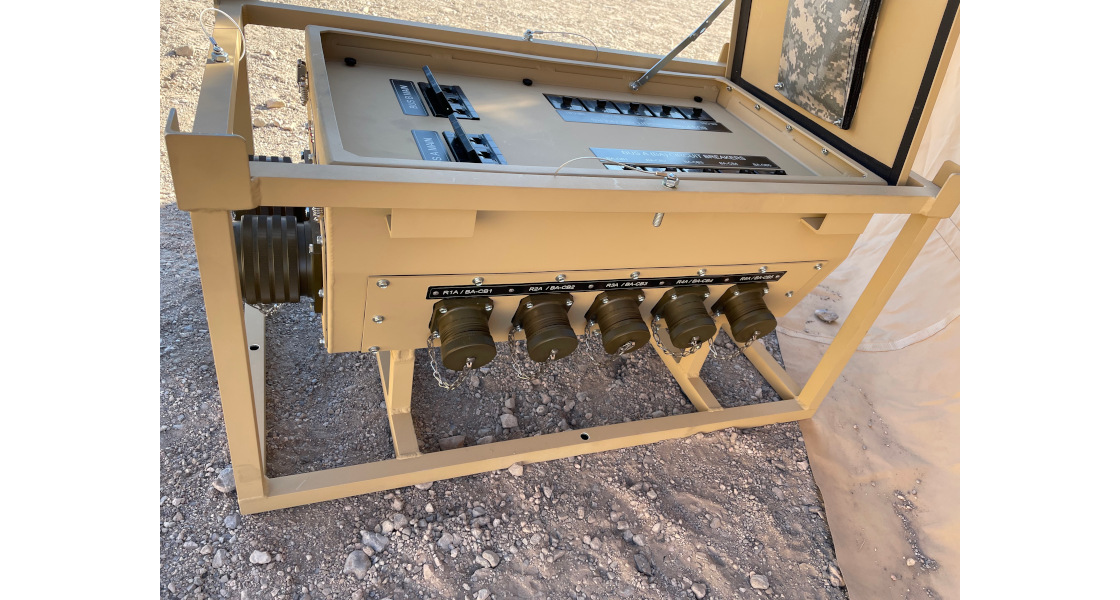

- Five 60A circuit breaker protected cannon plugs per branch (10 total)
- Output connector types can be customized to meet end user needs
- LED phase present power indicators located externally
- Two man lift capable (111 pounds)
- Stackable with stack-securing hardware provided
- Tools and storage pouch provided under lid
- Overall size optimized for efficient 463L pallet transport

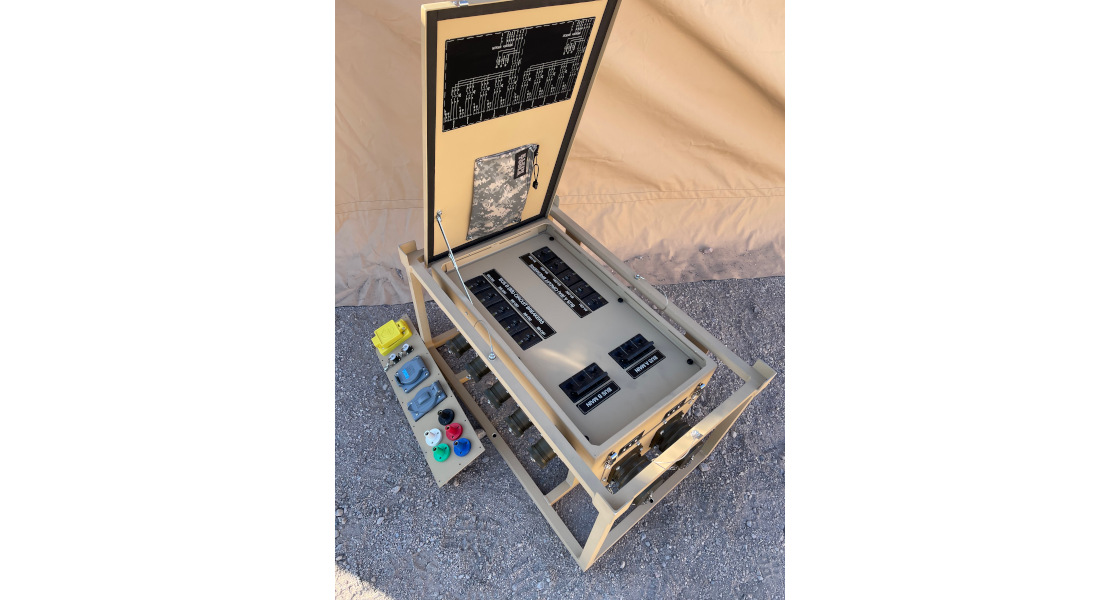

- Hinged outer cover with spring latches for easy access
